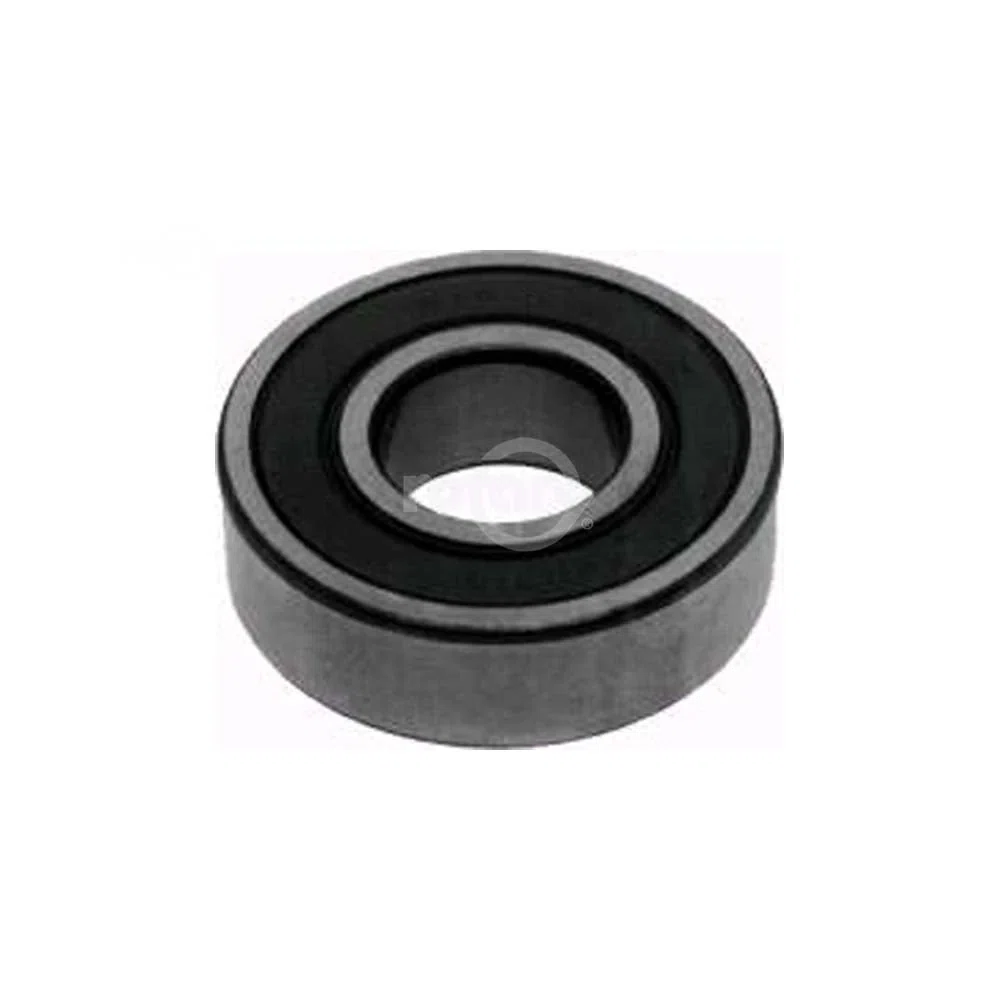

BALL BEARING 21/32 X 1-9/16 8507
Rotary

BALL BEARING 21/32 X 1-9/16 8507

SKU 8507

Original price was: $7.72.Current price is: $2.00.

Availability: In stock

Order by 8:00 PM ET, this part ships TODAY!

Business days only, for in-stock orders with confirmed payment and delivery details. Orders at or after 8 PM ET, on weekends or holidays ship the next business day. See shipping policy.

30-day Hassle-Free Returns

Returns require unused, uninstalled items and return instructions. See return conditions.

Payment logos: PayPal, Visa, Mastercard, Discover and American Express

Online checkout is currently unavailable. Order and delivery policies apply when ordering opens.

Confirm the equipment model, serial number and individual part specifications before choosing a replacement.

Before ordering, compare bearing versus bushing, seal or gasket; inner and outer dimensions; width and profile; application specification with the equipment documentation and the selected listing.

Product details

Bearing replaces AYP 110485X. Fits AYP 130794 Quill Assembly (Top Bearing). Also replaces HUSQVARNA 532110485, Homeowner Models. Bearing #6203-2RS.

Dimensions:

  • ID: 17 mm
  • OD: 40 mm
  • HEIGHT: 12 mm

Replaces:

  • ARIENS: 05418800, 21546046, 532110485, 5418800
  • AYP_ROPER_SEARS: 110485, 110485X, 532110485
  • BEARING: 6203-2RS, 6203LU
  • CentralSparesUK: 44388
  • Countax: 10811600
  • Cub Cadet: 741-0124A, 941-0600
  • CUSHMAN: 832498
  • DOLMAR: 960102176
  • EurogardenF1: 7207485
  • EXMARK: 136-5441
  • GHS: 6164
  • HUSQVARNA: 532 11 04-85, 5853239-01
  • JOHN DEERE: GX20818, GX21510, JD8535
  • JThomas: W-981
  • KING_O_LAWN: 7192
  • LAWNBOY: 700479, 703275
  • MAKITA: 960102176
  • MTD: 706-085336, 741-0124, 741-0124A, 741-0600, 941-0124, 9410600, 95406
  • MURRAY: 12325MA, 1255MA, 1501389MA, 1705897SM, 43846MA, 49562, 49562MA, 782973MA
  • Napa: 7-04194
  • NHC: 272-6860
  • OREGON: 45-257, 45-400, 45-624, 45-624-0
  • PRIME LINE: 7-04194
  • RatioParts: 076-203
  • SIMPLICITY_ALLIS CHA: 1666292, 1666292SM, 1705897, 1705897SM
  • SMATisco: 851-62032RS
  • SNAPPER_KEES: 1705897, 1705897SM, 409073, 7013020
  • STENS: 230-011, 230-060, 230-260, 230-266, 230-274
  • STIGA: 9549-0019-00
  • SUNBELT: A-B1AC61, A-B1RS46, A-B1SB483, AC-61, B1AC61, B1RS46, B1SB8507, GI-44, RS-46
  • SureFit: 504-01248
  • Toro: 100-1048, 109966, 112-0423, 136-5441, 251-277, 38-7820, 702581
  • TROY BILT: 1120502, 1185064, 1813216, 741-0124A, 941-0124, 941-0600, 95406
  • VIKING: 6109-001-2008
  • Wacker: 125686
  • WORLDLAWN: B276-6203RS

Specs:

  • Length: 4.0
  • Width: 3.0
  • Height: 0.5
  • Weight: 0.145
