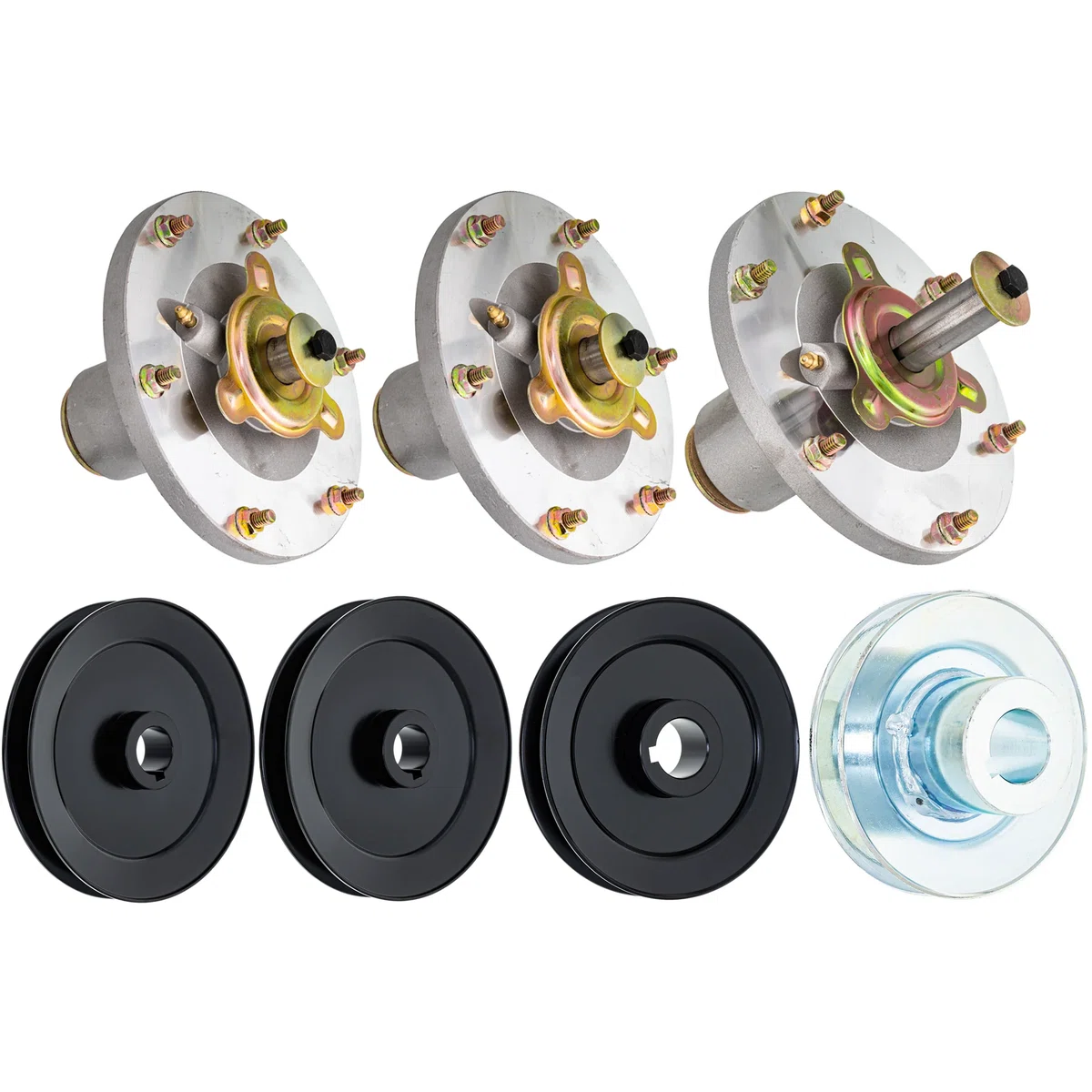

Spindle Kit Set for Grasshopper m148 321d 227 225 48-Inch Deck 623780
SKU 15KIT_K-SPN-2170
Original price was: $209.95.$57.00Current price is: $57.00.
Availability: 15 in stock
Confirm the equipment model, serial number and individual part specifications before choosing a replacement.
Before ordering, compare assembly versus housing, shaft or bearing; mounting pattern; shaft and pulley interface; hardware included with the equipment documentation and the selected listing.
Product details
810-KSP4392N Deck Spindle Kit Product Info:
- Outer Spindle Height-5 3/4'', Keyway Width-1/4'', Center Spindle Specs Height 7 1/2"
- Outer Pulley Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 6.28, Height (IN): 1.09, Thickness (IN): 1.09
- Center Pulley 1 Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 5.02, Height (IN): 1.02, Thickness (IN): 1.02
- Center Pulley 2 Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 4.26, Height (IN): 1.98, Thickness (IN): 1.98

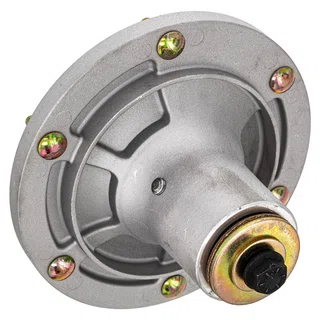

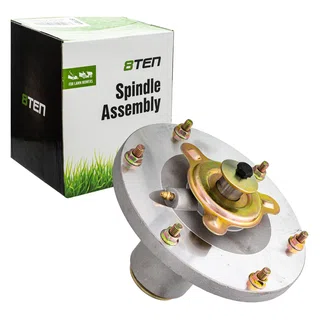

(QTY 2) 8TEN 810-CSP2203N Deck Spindle
Substitute For OEM Part Numbers(s): 623763

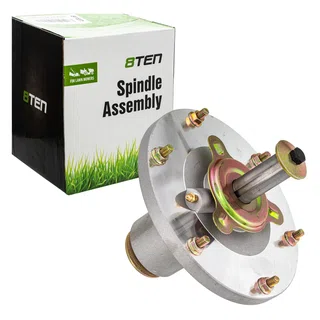

(QTY 1) 8TEN 810-CSP2206N Deck Spindle
Substitute For OEM Part Numbers(s): 623780

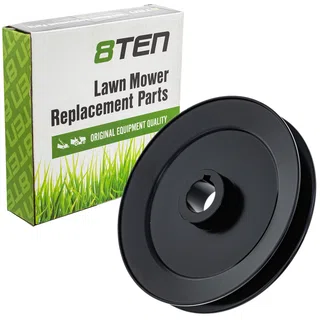

(QTY 2) 8TEN 810-CPL2306Y Pulley
Substitute For OEM Part Numbers(s): 415892

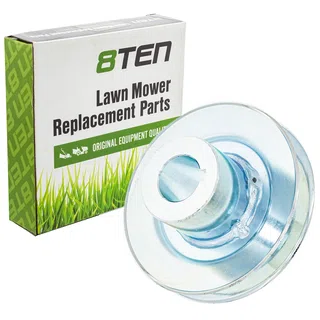

(QTY 1) 8TEN 810-CPL2307Y Pulley
Substitute For OEM Part Numbers(s): 415902

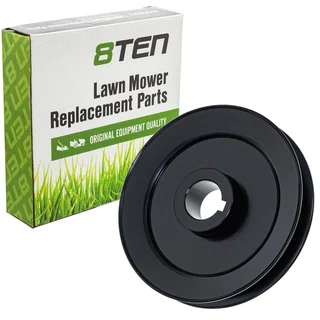

(QTY 1) 8TEN 810-CPL2317Y Pulley
Substitute For OEM Part Numbers(s): 415891
WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Additional information
| Brand | 8TEN |
|---|
