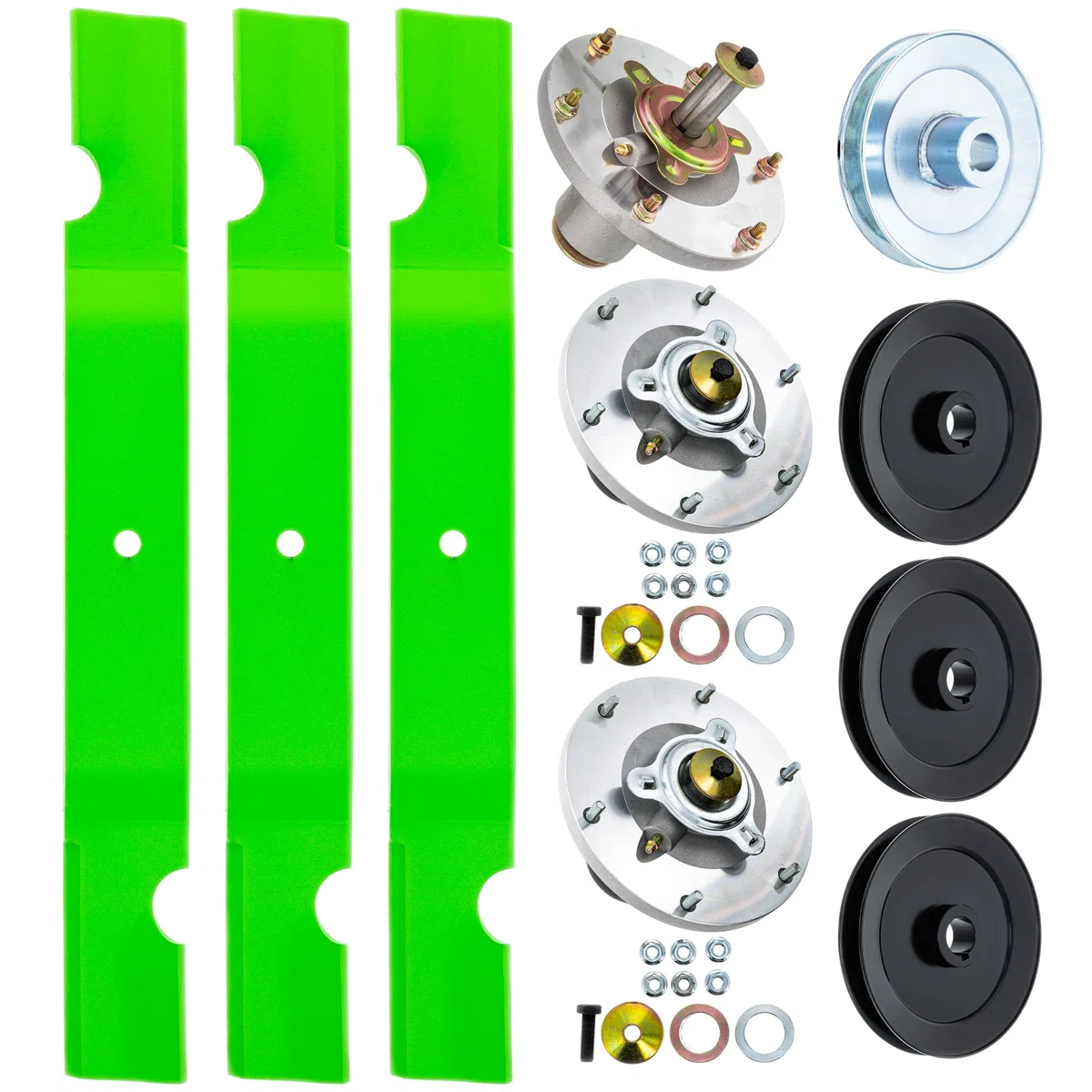

Spindle Blade Kit For Grasshopper MK1015316
SKU 15KIT_MK1015316
Original price was: $249.95.$66.00Current price is: $66.00.
Availability: 22 in stock
Confirm the equipment model, serial number and individual part specifications before choosing a replacement.
Before ordering, compare deck identification; component types and quantities; individual belt, spindle and blade specifications; included mounting hardware with the equipment documentation and the selected listing.
Product details
MK1015316 Spindle Blade Kit Product Info:
- Outer Spindle Height (IN): 7.36, Width(IN): 7.95, Length (IN): 7.95, Blade Mounting Pattern: 1/2-20 Thread, Center Spindle Specs Height-7 1/2
- Outer Pulley Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 6.28, Height (IN): 1.09, Thickness (IN): 1.09
- Center Pulley Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 6.52, Height (IN): 2.06, Thickness (IN): 2.06
- Blade Length (Inch): 20.98, Width (Inch): 2.5, Height (Lift) (Inch): 0.98, Blade Type: High Lift

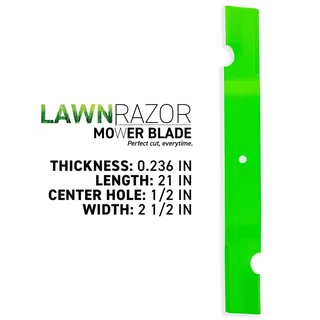

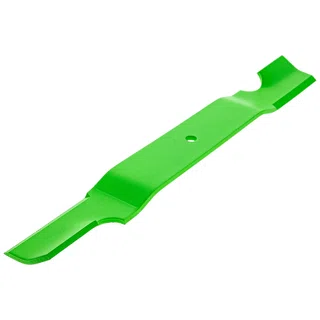

(QTY 3) 8TEN 810-CBL2712D LawnRAZOR High Lift Blade
Substitute For OEM Part Numbers(s): 320245

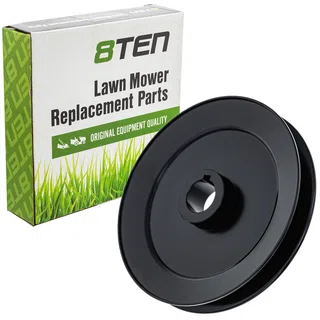

(QTY 3) 8TEN 810-CPL2306Y Pulley
Substitute For OEM Part Numbers(s): 415892

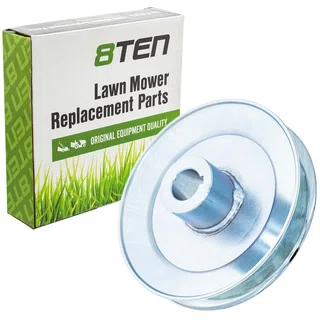

(QTY 1) 8TEN 810-CPL2300Y Pulley
Substitute For OEM Part Numbers(s): 415896

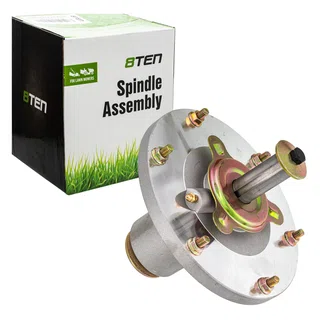

(QTY 1) 8TEN 810-CSP2206N Deck Spindle
Substitute For OEM Part Numbers(s): 623780

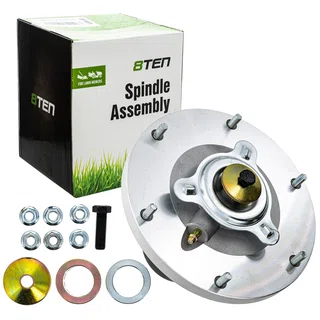

(QTY 2) 8TEN 810-CSP2569N Spindle Housing
Substitute For OEM Part Numbers(s): 623781, 623750, 623740, 623700
MK1015316 Fits the Following OEM Models:
WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Questions before you choose
What is included in this mower deck repair kit?
The component list specifies 3 blades; 3 pulleys; 1 pulley; 1 spindle; 2 spindle housings. Check each listed component separately; matching part names do not establish that the entries are interchangeable.
