Deck Rebuild Kit for Grasshopper 9148 48-Inch 320239 320234 383008 393225
SKU 15KIT_MK1015251
Original price was: $339.95.$91.00Current price is: $91.00.
Availability: 28 in stock
Confirm the equipment model, serial number and individual part specifications before choosing a replacement.
Before ordering, compare deck identification; component types and quantities; individual belt, spindle and blade specifications; included mounting hardware with the equipment documentation and the selected listing.
Product details
MK1015251 Deck Kit Product Info:
- Blade 1 Length (Inch): 18.03, Width (Inch): 2.49, Height (Lift) (Inch): 0.98, Blade 2 Blade Length (Inch): 15.04, Width (Inch): 2.5
- Spindle Height (IN): 7.76, Width(IN): 4.89, Length (IN): 4.89, Blade Mounting Pattern: 1/2-20 Thread
- Pulley Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 4.6; Height (IN): 0.94; Thickness (IN): 0.94
- Belt Profile: B/5L, Type: Raw Edge, Actual Length (In): 93, Width (In): 0.625, Height (In): 0.375, Cord Material: KEVLAR

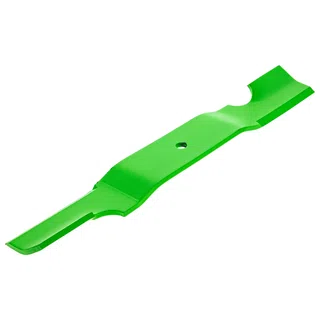

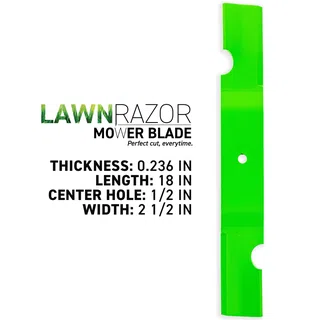

(QTY 2) 8TEN 810-CBL2700D LawnRAZOR High Lift Blade
Substitute For OEM Part Numbers(s): 320239

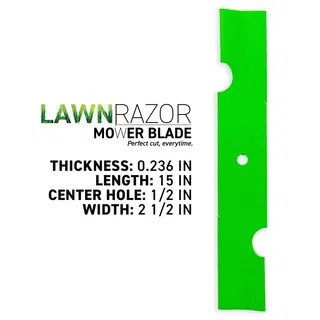

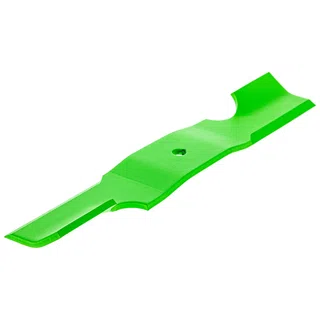

(QTY 1) 8TEN 810-CBL2897D LawnRAZOR High Lift Blade
Substitute For OEM Part Numbers(s):

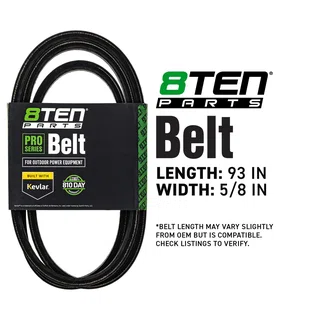

(QTY 1) 8TEN 810-CBL3279T Belt
Substitute For OEM Part Numbers(s): 383008

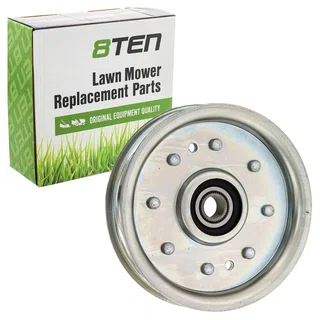

(QTY 2) 8TEN 810-CID2220L Idler Pulley
Substitute For OEM Part Numbers(s): AM37249, AM107468, AM37442, AM35862, 393225, 1680299, 1-403009, 1-602501, M81677, AM37248, AM30331, AM30194, AM134142, AM103296, 21304300, 050045

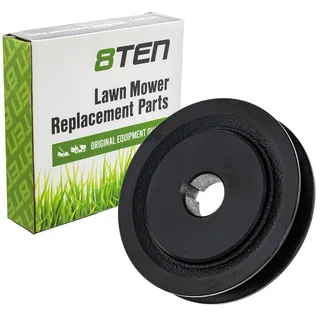

(QTY 3) 8TEN 810-CPL2314Y Pulley
Substitute For OEM Part Numbers(s): 414696

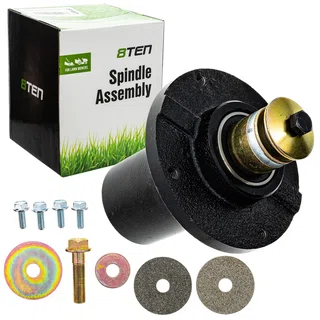

(QTY 3) 8TEN 810-CSP2561N Spindle Housing
Substitute For OEM Part Numbers(s): 623784
WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Questions before you choose
What is included in this mower deck repair kit?
The component list specifies 2 blades; 1 blade; 1 belt; 2 idler pulleys; 3 pulleys; 3 spindle housings. Check each listed component separately; matching part names do not establish that the entries are interchangeable.
