8TEN

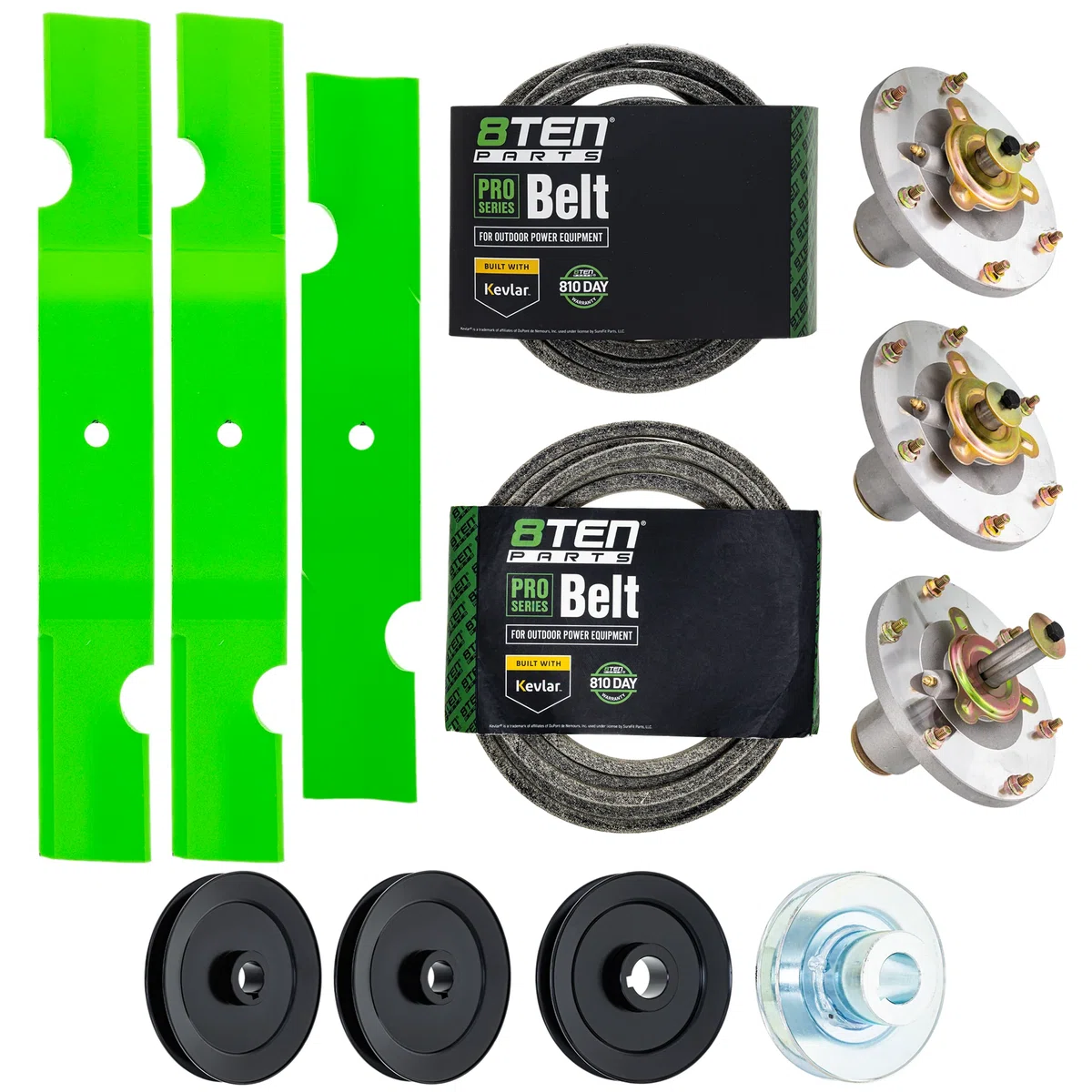

Blade Spindle Belt Kit for Grasshopper 227 225 48-Inch 320239 320234 623763
SKU 15KIT_MK1015189
Original price was: $272.95.$76.00Current price is: $76.00.
Availability: 18 in stock
Confirm the equipment model, serial number and individual part specifications before choosing a replacement.
Before ordering, compare deck identification; component types and quantities; individual belt, spindle and blade specifications; included mounting hardware with the equipment documentation and the selected listing.
Product details
MK1015189 Spindle Blade Belt Kit Product Info:
- Blade 1 Length (Inch): 18.03, Width (Inch): 2.49, Height (Lift) (Inch): 0.98, Blade 2 Blade Length (Inch): 15.04, Width (Inch): 2.5
- Outer Spindle Height-5 3/4'', Keyway Width-1/4'', Center Spindle Specs Height 7 1/2"
- Pulley 1 Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 6.28, Pulley 2 Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 5.02, Pulley 3 Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 4.26

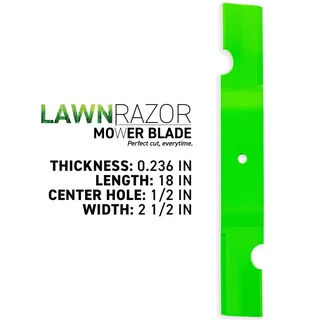

(QTY 2) 8TEN 810-CBL2700D LawnRAZOR High Lift Blade
Substitute For OEM Part Numbers(s): 320239

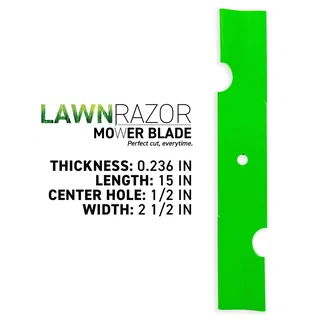

(QTY 1) 8TEN 810-CBL2897D LawnRAZOR High Lift Blade
Substitute For OEM Part Numbers(s):

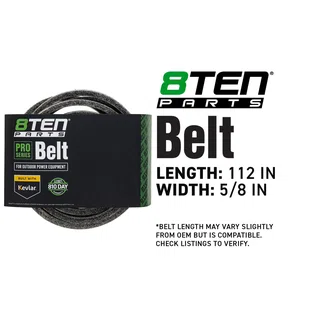

(QTY 1) 8TEN 810-CBL2820T Belt with Kevlar®
Substitute For OEM Part Numbers(s): 954-0642, 532197242, 754-0642, 593773401, 112-0933, 382085, 784322, 041-4022-00

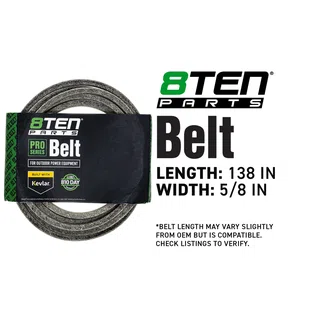

(QTY 1) 8TEN 810-CBL2939T Belt with Kevlar®
Substitute For OEM Part Numbers(s): 754-3055, 754-3055A, 954-3055A, M95875, 84009011, 5102040, 382086

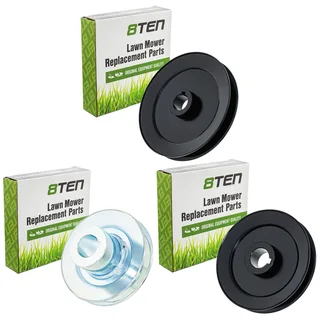

(QTY 2) 8TEN 810-CPL2306Y Pulley
Substitute For OEM Part Numbers(s): 415892
(QTY 1) 8TEN 810-CPL2307Y Pulley
Substitute For OEM Part Numbers(s): 415902
(QTY 1) 8TEN 810-CPL2317Y Pulley
Substitute For OEM Part Numbers(s): 415891

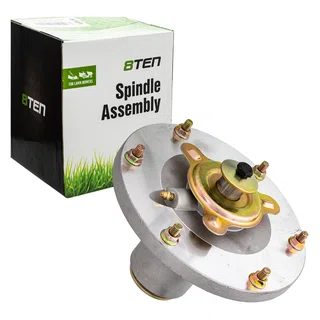

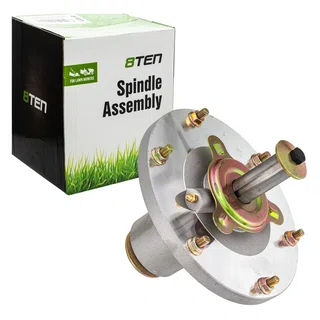

(QTY 2) 8TEN 810-CSP2203N Deck Spindle
Substitute For OEM Part Numbers(s): 623763
WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Questions before you choose
What is included in this mower deck repair kit?
The component list specifies 2 blades; 1 blade; 1 belt; 1 belt; 2 pulleys; 1 pulley; 1 pulley; 2 spindles. Check each listed component separately; matching part names do not establish that the entries are interchangeable.
Additional information
| Brand | 8TEN |
|---|
